Deskripsi

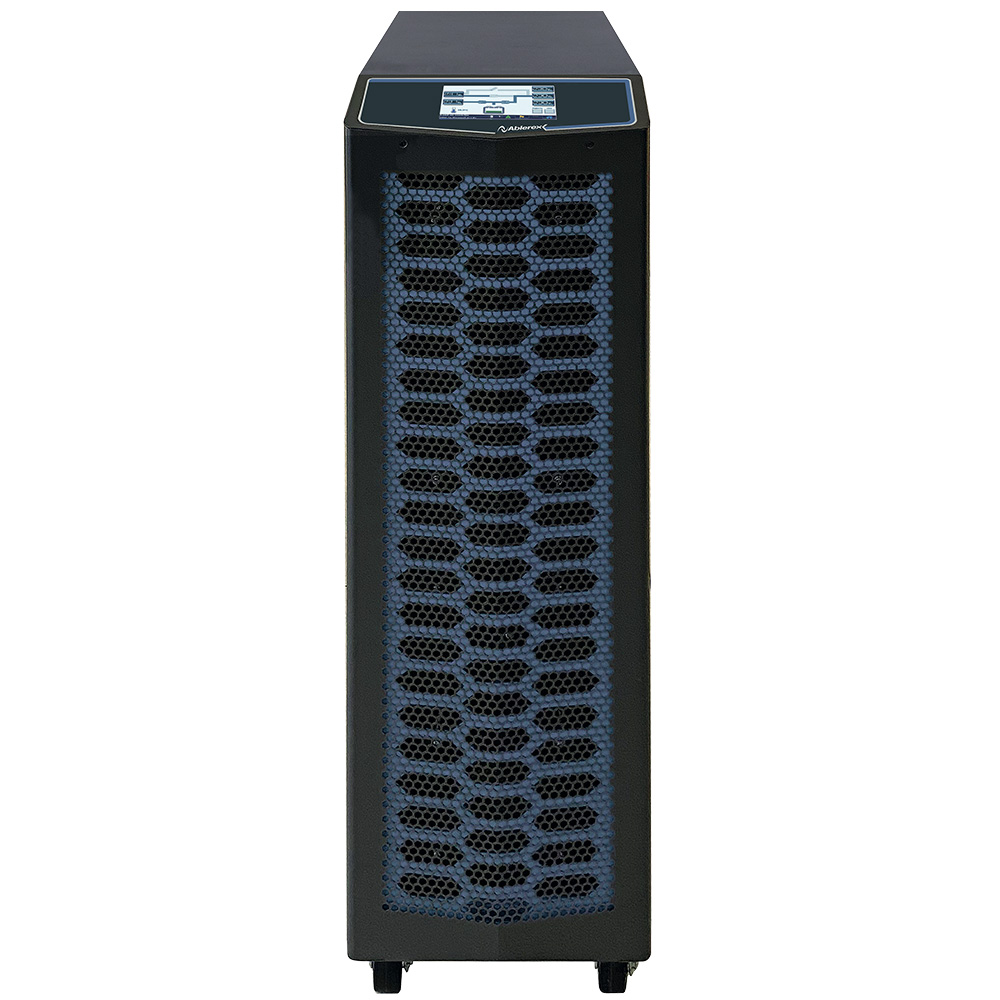

UPS with PF1 (kVA=kW) provides the highest efficiency with the smallest footprint.
The smallest footprint in its class (0.22 m2 for 20 kVA with 40×9 Ah internal batteries) and its vertical internal layout ensure a low TCO.
Two interchangeable versions, 3:3 or 3:1-3, can easily be selected on-site (for 10, 15 and 20 kVA) for maximum installation flexibility.
Internal battery up to 40×9 Ah (for 10, 15 and 20 kVA).
Suitable for generative load application.
Applications:
- Server rooms
- Micro and mini data centres
- Telecommunications and broadcasting equipment
- Electromedical equipment
- Industrial applications
- Regenerative loads: lifts, cranes, numerically controlled machines, flexographic printers, radar, etc.
Strengths:
- Compact and versatile UPS with easily configurable single- or three-phase output
- Lithium ready technology, maximum efficiency and versatility with the smallest footprint in its class.
Control and management software
Communication cards and software
Ablerex three-phase online UPS units offer maximum control thanks to optional communication cards:
- the SNMP network card enables you to monitor the status of the UPS from any PC or server connected to the LAN without having to install any specific software, thanks to the Web Server function, or remotely by means of a VPN connection. You can also manage automatic shutdowns of the devices connected to the UPS;
- the relay card with potential-free contacts transmits alarms remotely;
- the RS485 Modbus card effectively communicates the status of the UPS with the most widely used BMS systems.
